Cam & Ring Assembly
Also known as a roller ramp clutch assembly, a cam & ring assembly gives machinery extreme reliability at a low cost.
Cam & ring assemblies are a two-part system of a spring and roller with an optional thick cover that can be attached to one or both sides of the rim. The simple construction of this clutch functions in a number of applications:
- An indexing element in sewing machines, printing presses, and agricultural machinery
- An overrunning clutch for starters, ventilators, and turbines
- A backstop for drilling plants, conveyors, and electric motor applications
- A switchback or disconnection device for amusement park rides
Roller Ramp Clutch Assemblies
Hover over our to show more detail of our roller ramp clutch assembly.

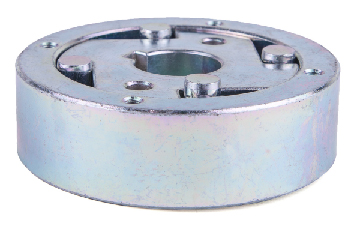

Cam and ring assembly

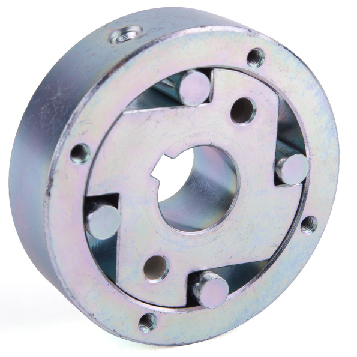

Cam and ring assembly - side view
Roller ramp clutch assemblies are easy to produce, making them an affordable option for any type of machinery requiring a one-way clutch device. The strength and reliability of the product can reduce the need for downtime and repairs, thus increasing cost-effectiveness.
The bore size of Dayton Superior Products’ cam & ring assembly ranges from ¼ up to 2¾ inches, with torque per foot spanning from 5 to 500 pounds.
Dayton Superior Products works to create power transmission solutions that are tailored to each customer’s individual needs. Contact us today to learn more about our inventory of clutches, couplings, and collars, or to get a price quote for one of our top-rated products.

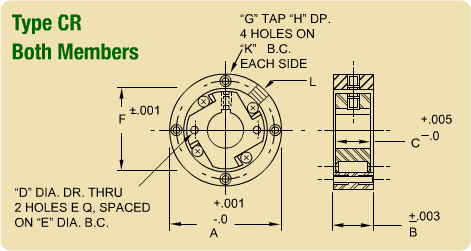

| Cam & Ring Ass'y No. | Cam Ass'y No. | A | B | C | D | E | F | G | H | K | L | Standard Bores | Torque Lbs./Ft. | Speed RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CR 5 | C5 | 1.500 | .647 | .630 | 9/64 | .832 | 1.020 | 6-32 | 7/32 | 1.280 | 8-32 | 1/4, 3/8, 1/2 | 5 | 1800 |
| CR 14 | C14 | 1.876 | .647 | .630 | 9/64 | 1.125 | 1.375 | 6-32 | 9/32 | 1.687 | 8-32 | 3/8, 1/2, 5/8 | 14 | 1800 |
| CR 28 | C28 | 2.625 | .772 | .755 | 13/64 | 1.424 | 1.905 | 8-32 | 3/8 | 2.275 | 10-32 | 5/8, 3/4, 7/8 | 28 | 1500 |
| CR 100 | C100 | 3.501 | 1.032 | 1.015 | 17/64 | 1.875 | 2.640 | 10-32 | 3/8 | 3.000 | 10-32 | 3/4, 7/8, 1, 1-1/8, 1-1/4 | 100 | 1000 |
| CR 200 | C200 | 4.376 | 1.622 | 1.605 | 17/64 | 2.650 | 3.280 | 1/4-20 | 7/16 | 3.812 | 3/8-24 | 1-1/2, 1-3/4, 2 | 200 | 800 |
| CR 500 | C500 | 5.876 | 1.785 | 1.770 | - | - | 4.550 | 5/16-18 | 1/2 | 5.250 | 5/16-18 | 2-1/4, 2-1/2, 2-3/4 | 500 | 600 |
